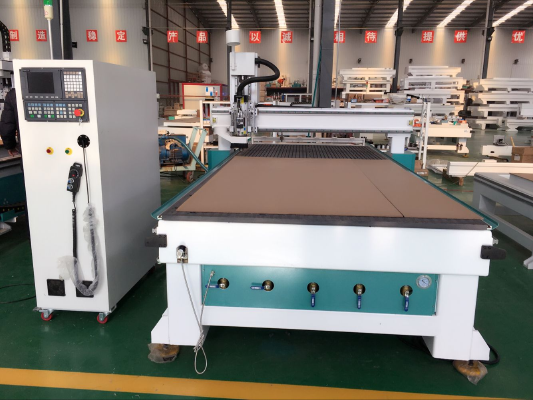

Linear Auto tools changer cnc router machine SD1325C for cabinet furniture

Linear Auto tools changer cnc router machine SD1325C for cabinet furniture

  • FOB Price:US $14,000 -20,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 300 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2007-12-27
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15
  • Place of Origin:  China
  • Brand Name:  sudiao
  • Model Number:  SD1325C
  • Weight: 2000.000 kg

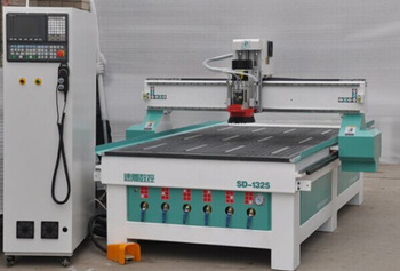

Row type 6 position auto tool changer 4 axis cnc router engraver machine SD-1325C


  • Size:  15
  • Place of Origin:  China
  • Brand Name:  sudiao
  • Model Number:  SD1325C
  • Weight: 2000.000 kg

Technical Parameters

Model

SD-1325C



Working Travel

X axis

1300mm

Y axis

2500mm

Z axis

200mm

Table Structure

Vacuum suction

Orbit

HIWIN or PMI square orbit

Transmission Type

X,Y Rack, Z Ball screw

Working accuracy



±0.05

Re-positioning accuracy

Max air move speed

60000mm/min

Max working speed

25000mm/min



Spindle parameters

Type of cooling

Imported Italian HSD air cooling spindle

Power

9KW

Speed

0-24000r/min

Inverter

11KW Sunfar Inverter

Drive system

750W Japan Yaskawa servo (Z400W)

Command code

G code

Control system

Syntec-6MA

Oiling system

Automatic

Working voltage

AC380V/3PH/50HZ
